APG MACHINE
AVOL-1010 Epoxy resin Press Machine for current transformer fully automatic type
AVOL-1010-25 Fully automatic APG machine is an advanced, automatic and high-efficiency press machine, with an automatic control system, one-button run machine, Automatic close mold, injection, tilting machine, hold pressure and open mold.

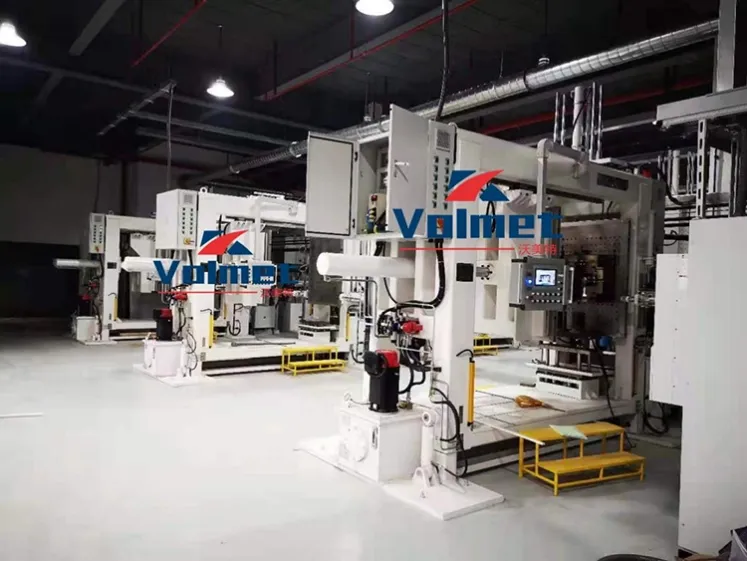

AVOL-1010 Fully Automatic APG Clamping Machine:
Application:
They are used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.
Advantages:
Fully automatic control system with touch screen, Realize one-button run machine:
-Full automatic system→ programmable, high efficiency, Low requirement for workers
, he only needs to know to press the START button;
Save labor costs, 1 worker can operate 2-4 machines; the machine finishes the casting process itself, not only Reduce work injuries,but also ensure product quality.
Integrated machine design→ easy installation, saves shipping cost, saves factory space.
Machine frame: Tempering and finishing machinery →Improve strength, avoid deformation, ensure high precision, avoid mold leakage
Motor→ save energy, low noisy
Safe fences→ Avoid work injure
Customized part:
Remote control function(optional)→ great help to training and troubleshooting online
Big clamping force reach: 800KN
Supply vacuum chamber between plates
Technical Parameters:（Offer Customize Service Max Clamping Force:800KN）
Model No. | AVOL-8060-25 | AVOL-8080-25 | AVOL-1010-40 | AVOL-1210-40 |
Heating plate size (mm) | 800X600 | 800X800 | 1000X1000 | 1000X1200 |
Clamping force (KN) | 250 | 250 | 400 | 400 |
Speed of clamping close (m/min) | 3.1 | 3.1 | 2.7 | 2.7 |
Speed of clamping open (m/min) | 4.8 | 4.8 | 3.1 | 3.1 |
Distance between heating plates (mm) | 150-1200 | 200-1500 | 200-1600 | 200-1600 |
Heating power (KW) | 12 | 20 | 24 | 24 |
Hydraulic unit power (KW) | 5.5 | 5.5 | 5.5 | 5.5 |
Tilting degree (°) | 7° X axis,Y axis tilting optional | |||
Machine dimension (mm) | 3750X970X2570 | 4500X1020X3730 | 4805X1220X4260 | 4805X1220X4260 |
Machine weight (KG) | 4300 | 5350 | 7700 | 7700 |
