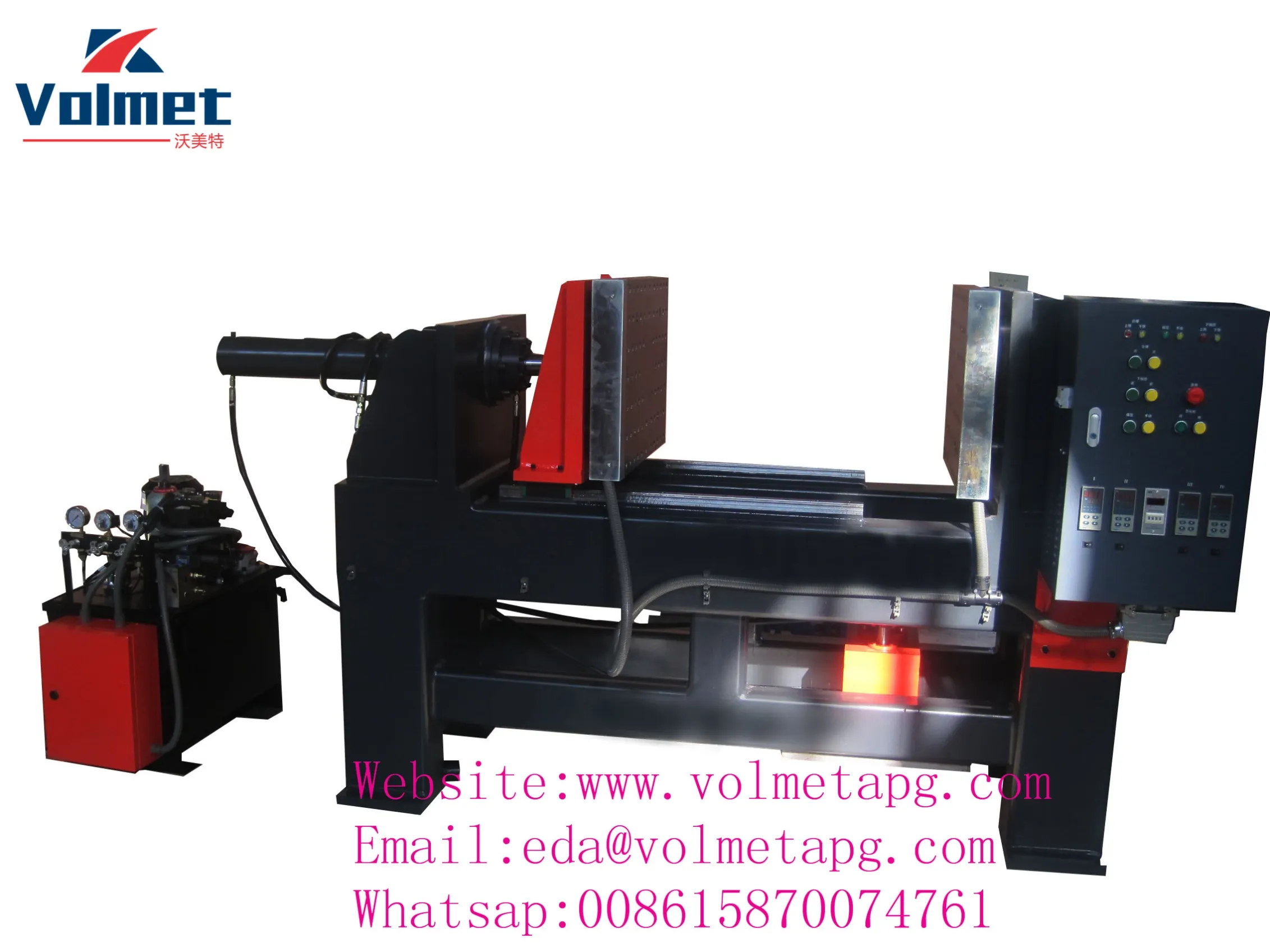

Dvol-8060-25 Double Station Apg Injection Machine
Double clamping plate,high efficiency,used for casting insulators,wall bushing and simple products
DVOL-8060-25 Double Type APG Clamping Machine:
APG Machine Video
Application:
Used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.
Advantages:
-Machine double station→high efficiency
-Integrated on machine→ easy installation,the user no need to hard work of connecting oil pipes and wires, just plug in the power supply directly.
→save shipping cost,save factory space.
Machine frame: Tempering and finish machinery →Improve strength,avoid deformation,ensure high precision,avoid mold leakage
Safe fences→ avoid work injure
Supply technical training→Ensure client make qualified products
Supply complete production line→From machine,mold to raw material,assist client build production line in shortest time and reasonable cost.
Technical Parameters:
Model No. | DVOL-8060-25 | |||
Heating plate size (mm) | Clamping force
(KN) | Speed of clamping close
(m/min) | Speed of clamping open
(m/min) | Distance of heating plates
(mm) |
800X600 | 250 | 3.1 (2.4) | 4.8(3.3) | 125-1175mm |
Heating power
(KW) | Hydraulic unit power
(KW) | Tilting degree
(°) | Machine dimension
(mm) | Machine weight
(KG) |
24 | 5.5(2.2) | 5° | 6560X1020X3205 | 7350 (6850) |
Standard Type APG Machine At Client Site&Onsite Technical Training:
We not only produce APG machine and molds,but also offer technical training at site,ensure client produce qualified products.
Onsite Technical Training In Client Company:
After X-ray, tensile test, partial discharge test, leakage test, the product meets customer requirements, and the customer is very satisfied.
Apg Injection Machine Casting Production Process:
Epoxy Resin Voltage Transformer APG Technique Training:
APG Press Machine Production Process:
1.Milling machine frame: each side of frame will milled by vertical lathe machine,enasure installation precison,avoid mold leakage.
2.Heating treatment for machine frame: Do 3 times of heat treatment for machine frame after welding. release inter stress,reduce machine get deformation.
APG Press Machine Delivery Process:
After the qualified samples of the equipment and molds are prepared, we will carry out strict packaging to avoid damage to the equipment during transportation and smoothly deliver to the customer.
